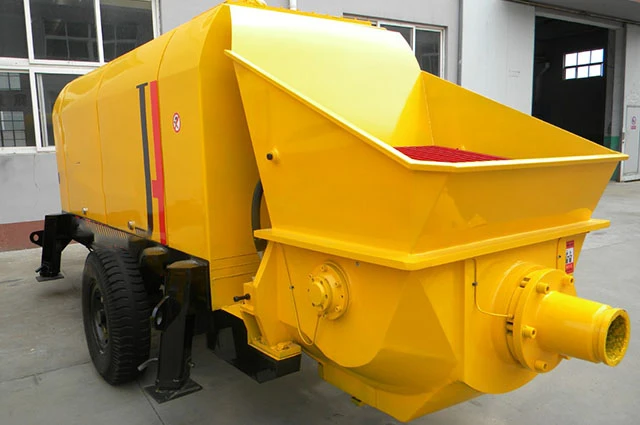

Peb lub twj tso kua mis lub cev muaj zog tuaj yeem tswj tau ntau yam kev sib xyaw ua ke tsim thiab ua haujlwm txawm tias qhov nyuaj tshaj plaws, ua tsaug rau nws cov khoom siv rugged thiab ruaj khov. Qhov no txhais tau hais tias nws tuaj yeem daws tau ob qho tib si loj thiab me me kev tsim kho nrog yooj yim.
Kev teeb tsa
- 1. Fais fab: Suav teb lub cev muaj zog.
- 2. Lub twj tso kua mis tseem ceeb: Kawasaki ntshuam los ntawm Nyiv.
- 3. Cov roj tank loj: Cov ntsaws ruaj ruaj txais yuav American Parker.
- 4. Hydraulic valve: Shanghai Lixin, Beijing Huade.
- 5. Cov khoom hluav taws xob: Cov khoom siv hluav taws xob tseem ceeb yog los ntawm Schneider, Omron .
- 6. Kev tuav hloov ntawm kev kub siab thiab tsis tshua muaj siab yog nruab.
- 7. Cov pob qij txha: Eaton; Pipeline thawj los ntawm Ltalis, txhawb nqa los ntawm Eaton.
Tej yaam num
1
Motor Concrete Pump Hauv UAE
2
Mini pob zeb twj tso kua mis hauv Philippines
3
Motor Concrete Pump Hauv Canada
Cim npe nrov: lub cev muaj zog twj tso kua mis lwm tus neeg, manufacturers, nqe, kev muag khoom
|
Cov khoom |
Chav tsev |
Qauv thiab tsis |
|
|
HBT50S -12-55 |
|||
|
Theoretical max. tso tawm ntim |
m³/h |
50 |
|
|
Theoretical max. kev xa khoom siab |
Mpa |
12 |
|
|
Max. tus me nyuam zaus |
lub sij hawm/min |
20 |
|
|
Theoretical max. kev xa khoom nrug |
Ntsug |
m |
150 |
|
|
Kab rov tav |
m |
350 |
|
Distribution valve hom |
|
S valve |
|
|
Specification ntawm tus me nyuam lub tog raj kheej |
mm |
Φ200×1200 |
|
|
Specification ntawm lub tog raj kheej roj tseem ceeb |
mm |
Φ125/Φ80×1200 |
|
|
Roj tank peev xwm |
L |
300 |
|
|
Hopper muaj peev xwm |
L |
600 |
|
|
Pub qhov siab |
mm |
1400 |
|
|
Qhov hluav taws xob qhib txoj kab uas hla |
mm |
Φ150 |
|
|
Sab hauv dia. lub cev xa khoom |
mm |
Φ125 |
|
