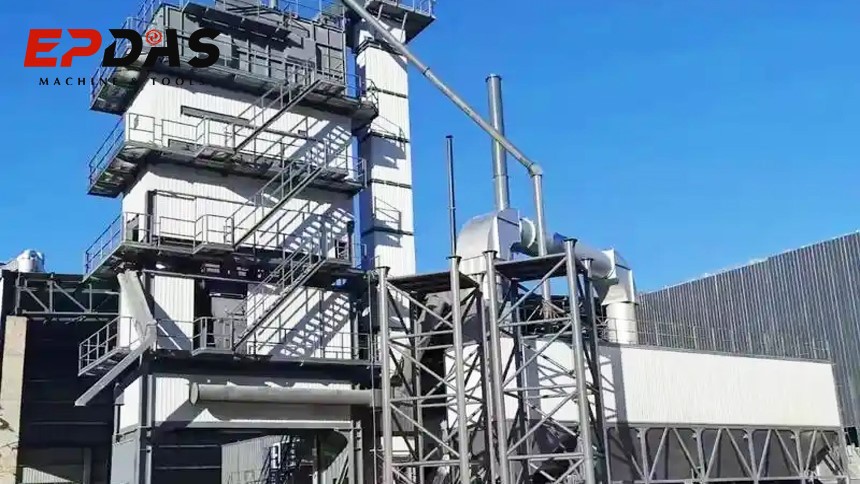

Asphalt Nws Cog
Raws li cov khoom tseem ceeb ntawm kev siv cua sov niaj hnub, los ntawm cov txheej txheem ua kom zoo nkauj uas ua tau zoo thiab ua tau zoo thiab kev siv tau ntawm txoj kev kev tsim kho.
EPDAS Asphalt sib xyaw cov nroj tsuag feem ntau muab faib ua peb pawg: hom kev sib txawv, hom txuas ntxiv thiab kab sib ncig. Ntawm lawv, sib txawv nruas sib xyaw ua ke yog tsim nyog rau high- Cov phiaj xwm kev kawm; Hom Nruam Nruam yog cim los ntawm kev ua haujlwm siab thiab yog tsim nyog rau loj- cov haujlwm ua haujlwm txuas ntxiv. Cov hom rov qab ua tau tuaj yeem ua tiav qhov rov siv cov ntaub ntawv pov tseg cov khib nyiab asphalt.
+
+
Lub ntsiab ntawm asphalt batching cog
Txias Khoom Siv Khoom Siv Khoom
Kom Qhuav
Kub Aggregate Lifting
Kev co ntsuam xyuas cov system
Uas System
Sib tov System
Plua Plav Tawm System
Tswjhwm system

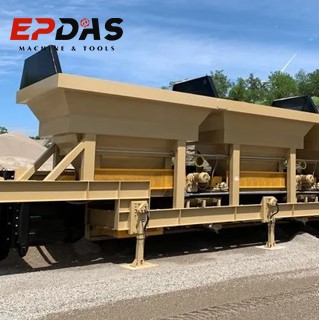

Txias Khoom Siv Khoom Siv Khoom
Feem ntau suav nrog cov khoom txias, vibrating Feeder, siv lub luag haujlwm ntawm kev sib txawv los tiv thaiv kev sib txawv los tiv thaiv kev sib txawv thiab xyuas kom muaj kev sib tw convey.

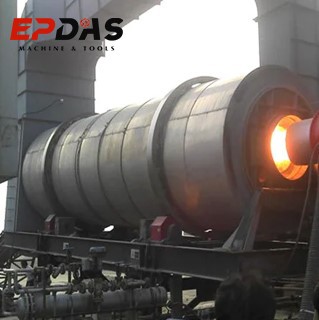

Kom Qhuav
Mas yog tsim ntawm lub cev nruas, hlawv thiab nqa phaj, lub luag hauj lwm rau tig lub zog kom tshem tawm cov dej noo thiab txhim kho ashuncture Ashesion. Lub burner yog nruab nrog tsis siv neeg kev tiv thaiv thiab qhov kub tswj kom ntseeg tau cua sov ntau.

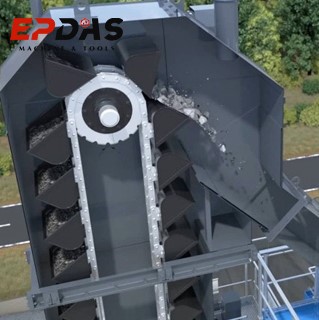

Kub Aggregate Lifting
Mas muaj xam ntawm HOPPER, saw thiab siv thiab kis tau tus ntaus ntawv, siv los piav qhia lub nra hnyav kom tau txais kev ntsuas sib txawv ntawm cov sib txawv. Tus kis tus neeg ntaus nqi muab lub zog ua kom ntseeg tau cov neeg sib cav sib ceg.

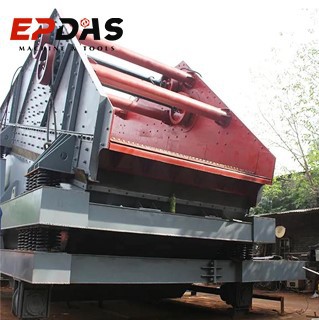

Kev co ntsuam xyuas cov system
Asphalt nroj cog muaj cov vijtsam vibrating thiab lub vijtsam. Lub vibrating npo cais cov kev sib sau los ntawm particle loj los ntawm kev co los ntawm kev co thiab ntxaij kev sib tw los ntawm kev sib xyaw ua ke los ntawm qhov loj me. Lub vibrating ntawm lub vijtsam admts ib multi- txheej txheej txheem tsim thiab tuaj yeem ntsuam xyuas cov khoom sib xyaw ntawm ntau lub sijhawm.

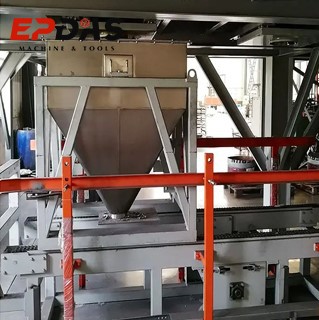

Uas System
Nws yog tsuas yog tsim ntawm kev sib sau ua ke hnyav, asphalt uas Hopper thiab muab tub lim uas cia siab. Nws tau txais kev siab siab siab - precision sensors rau qhov hnyav siab ua ke, asphalt thiab muab tub lim. Tus txheej txheem hnyav yog ua tiav los ntawm kev tswj hwm kom txo tau tib neeg qhov yuam kev.

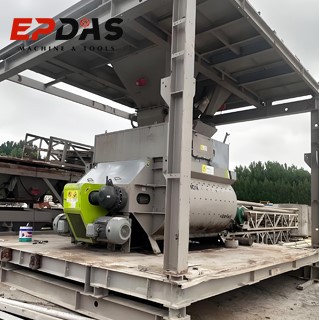

Sib tov System
Asphalt nruas sib xyaw cog yog tsuas yog tsim ntawm ntxaib -} peel tov thiab cov hniav sib tov thiab paug chaw nres nkoj. Nws yog lub luag haujlwm rau kev sib xyaw ua ke sib xyaw ua ke, cov ntxhia ua hmoov thiab asphalt nyob rau hauv kev faib ua feem ua ke los ua ib qho kev sib xyaw ua ke los sib xyaw.

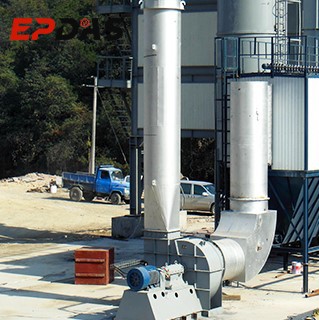

Plua Plav Tawm System
Nws yog tsuas yog tsim ntawm lub hnab plua plav, cyclone plua plav collector thiab ntxias cua daj cua ntxuam. Nws yog lub luag haujlwm rau kev sau thiab ua cov plua plav tsim cov khoom tsim tawm thaum lub sijhawm tsim khoom ntawm Asphalt chaw nres tsheb. Cov hmoov av tshem tawm efficiency yog qhov tseem ceeb, uas tuaj yeem txo cov hmoov av pov tseg thiab tiv thaiv ib puag ncig.
Tswjhwm system
Xws li cov PLC maub los, kov npo, sensuator, actuator, ua txhaum cov khoom siv ua haujlwm nyob rau hauv lub sijhawm tiag tiag, thiab txhim kho ntau dua kev ua haujlwm.

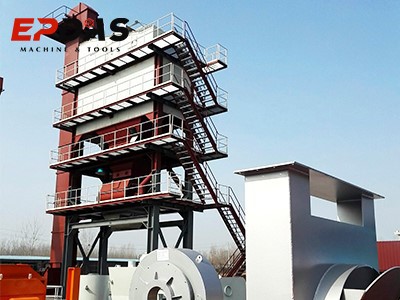

Yuav ua li cas lub tshuab kub asphalt cog ua haujlwm?
Kev ua haujlwm video zaub ntawm asphalt mixing tsob nroj.
▲ Cov kev thauj mus los txias thiab ua kom qhuav
Txias aggregate tau khaws cia hauv cov khoom txias bins raws li qhov sib txawv ntau thiab tsawg. Txhua txhua lub hauv paus yog nruab nrog qhov sib txawv zaus nrawm nrawm tswj kev tswj hwm kom yog tswj tau cov khoom sib sau. Aggregates nkag mus rau lub tshuab ziab kom qhuav los ntawm txoj siv tawv conveyor, thiab tuaj nkag rau hauv siab- huab cua kub hauv lub nruas kom tau rhuab thiab qhuav.
▲ Cov kev sib sau ua si kub thiab meterized
Cov batch sib xyaw ua ke cog tsob ntoo kom sov kom sov tau thauj mus los rau lub vijtsam vibrating los ntawm elevator kom tau qhab nia kuaj xyuas. Aggregates ntawm cov sib txawv sib txawv yog faib rau ntau cov khoom kub bins. Qhov kev ntsuam xyuas kev tshuaj ntsuam yog khaws cia hauv ib ntus hauv cov khoom kub bins thiab tos kom muaj feem ua feem ntau. Lub tshuab hluav taws xob siv hluav taws xob tuav cov kev pub mis pub mis piv ntawm txhua qib ntawm kev sib sau ua ke kom paub tseeb tias muaj feem sib cais.
▲▲ Asphalt sib xyaw ua ke thiab tsis siv tshuaj
Lub siab ua ke, asphalt thiab fump nkag mus rau lub tank hlau thiab raug yuam kom sib xyaw los ntawm cov sib xyaw ua ke. Cov sib xyaw ua ke sib xyaw nkag rau hauv cov khoom lag luam tiav rau cov khoom lag luam ib ntus, thiab raug rho tawm los ntawm cov khoom lag luam tiav ntawm cov khoom thiab tusyees pw ntawm txoj kev.
Ntau npaum li cas yog ib qho batch sib txuas asphalt cog?
Tus xa khoom ntawm EPDAS asphalt tov nroj tsuag
Cov asphalt tov tsob nroj tus nqi yog cuam tshuam los ntawm ntau yam, suav nrog cov nqi, thiab lwm yam ntawm cov nqe ntawm Epdas asphalt cog rau siv. Yog tias koj xav tau kom tau txais kev cog cog qoob loo yog, thov hu rau peb tam sim ntawd thiab peb yuav muab cov lus hais kom ntxaws raws li koj cov kev xav tau!
| Tus qauv | Tus nqi |
| GLB20: | $47,500-$50,000 |
| QBB80: | $150,000-$160,000 |
Qhov Zoo ntawm Asphalt Sib Xy Nkaus Tsob Nroj
Qhov Ntau Lawm
Asphalt hot mix plant adopts continuous or intermittent production mode, with production capacity ranging from 40 tons/hour to 400 tons/hour. Qhov kev sib xyaw ua ke tau zoo tuaj yeem tsim cov khoom siv asphalt zoo, uas yog tsim nyog rau cov kev xav tau ntawm cov nplai sib txawv thiab txhim kho kev ua haujlwm ntawm txoj kev kev tsim kho.
Cov Qib Siab Ntawm Automation
Nruab nrog kev tswj hwm cov txheej txheem siab thiab cov txheej txheem logicable, cov asphalt sib tov tau remotely saib cov txheej txheem ntau lawm; Kev lag luam yooj yim, txo cov tib neeg kev ua tsis yooj yim, txhim kho kev nyab xeeb thiab txij nkawm efficiency, thiab rwb tswj cov kev tswj ntawm cov txheej txheem ntau lawm.
Yog Batching
Asphalt Nruas Cais Cawv yog nruab nrog kev sib sau ua feem thiab tswj tau kom paub meej tias qhov ua tau zoo li asphalt sib tov ua yog ruaj khov thiab hauv txoj kab nrog cov qauv tsim qauv.
Yooj khov hloov tau
Lub asphalt sib tov cog tau tuaj yeem tsim ntau hom asphalt tov (thiab tuaj yeem hloov kho kom haum rau cov kev tsim kho ntawm kev tsim kho kom zoo sib xws, xws li cov kev mob siab sib txawv, txias, thiab lwm yam kev nyab xeeb huab cua.
Asphalt Hulling Cable Tsum
40+ xyoo ntawm kev paub kev lag luam
EPDAS tau tsom mus rau kev tsim cov pob zeb ua thiab asphalt sib xyaw rau ntau tshaj 40 xyoo, thiab tau raug xa tawm mus rau Sab Hnub Tuaj Tebchaws Asmeskas, Africa, South America thiab lwm lub tebchaws. Nws muaj lub npe zoo nkauj zoo thiab lub koob npe nrov hauv khw thiab tuaj yeem muab siab- zoo li cov khoom siv thoob ntiaj teb. Nws tau raug lees paub thiab ntseeg los ntawm cov neeg siv khoom.
Ib -}} txhob customized daws teeb meem
EPDas muab tag nrho cov cusuminous sib tov sib xyaw cog cov ntsiab lus rau cov neeg siv khoom sib txawv (xa cov phiaj xwm tsim → kev teeb tsa thiab kev kawm → lub neej kev pabcuam). Los ntawm cov kev npaj pib rau kev txhim kho kev ua haujlwm, peb paub meej tias txhua qhov txuas tau zoo rau koj, pab koj tsim kom muaj cov kab asphalt, ruaj khov, ruaj khov, ruaj khov, ruaj khov thiab ua raws li cov kab asphalt, ruaj khov,
Cim npe nrov: Asphalt nws ob tog nroj tsuag, Tuam Tshoj As As As As As As As Assulion Tshuab
Khoom Parameter
Batch Asphalt Sib Xy
| Tus qauv | Ep - qlb60 | Ep - ncuavlb90 | Ep - qlb105 | Ep - qlb125 |
| Kev Muaj Peev Xwm | 45-60tph | 60-90tph | 90-105TPH | 110-125Tph |
| COV TOV KHOOM MUAJ LEEV | 800kg | 1100kg | 1.250kg | 1600kg |
| Kev cia siab cia siab | 4*6.5m3 | 4*6.5m3 | 4*6.5m3 | 4*8m3 |
|
Kom Qhuav (Inch Dav Dav) |
1.2*5.2m | 1.5*6.6m | 1.8*8.0m | 1.8*8.0m |
| Lub Hnab Lim Cheeb Tsam | 230m3 | 420m3 | 420m3 | 450m3 |
| Vibrating npo | 4/5 | 4/5 | 4/5 | 4/5 |
| Bitumen Cua Sov Hlawv | 15*104kcal / h | 30*104kcal / h | 30*104kcal / h |
40*104kcal / h
|
| Bitumen Tank Peev Xwm | 15t | 30t | 30t | 30t |
| Tswjhwm system | PLC + KOV KOOB / tswj lub computer | |||
Nruam Asphalt sib xyaw
| Tus qauv | Ep - ghb60 | Ep - ghb80 | Ep - ghb100 | Ep - ghb130 |
|
Cov Khoom Siv Raw Khoom Lub peev xwm |
60Tph | 80tph | 100Tph | 130Tph |
| Kev cia siab cia siab | 3*6.5m3 | 4*8m3 | 4*8m3 | 4*8m3 |
| Tshuab ntsia nruas dia.x l | ɸ1200x6500mm | ɸ1500x8000mm | ɸ1500x9000mm | ɸ18x8000mm |
| Kev Nkag Tebchaws Kev Nkag Tebchaws | 550kg / h | 650kg / h | 850kg / h | 1200kg / h |
| Cov hmoov av sau thaj chaw lim | 384m2 | 480m2 | 408m2 | 528m2 |
| Thermal Cia Rau Hauv Ntim | 5m3 | 10m3 | 12m3 | 12m3 |
| Bitumen Tank Ntim | 1x 30 m3 | 1x 40 m3 | 2x 40 m3 | 3x 40 m3 |
| Addassive Ntsia Hlau Conveyor Tsav | 1x 0.75kw | 1x 0.75kw | 1x 0.75kw | 1x 1.1kw |
| Tswjhwm system | PLC + KOV KAWG | |||
Rov ua dua li tsob ntoo
| Tus qauv | Ep - dhb60 | Ep - dhb80 | Ep - dhb100 | Ep - dhb130 |
|
Cov Khoom Siv Raw Khoom Lub peev xwm |
60Tph | 80tph | 100Tph | 130Tph |
|
Muaj Peev Xwm Ntau Lawm Nyob rau hauv cov qauv |
20TH | 40Tph | 60Tph | 80tph |
|
Tag nrho cov zis ntawm cov khoom siv Nyob rau hauv cov qauv |
60-80tph | 90-120TPH | 120-150tph | 150-180tph |
| Rap hoppers | 1×6.5 m3 | 1×8 m3 | 1×8 m3 | 2x8m3 |
| Kev cia siab cia siab | 3*6.5m3 | 4*8m3 | 4*8m3 | 4*8m3 |
| Tshuab ntsia nruas dia.x l | ɸ1200x6500mm | ɸ1500x8000mm | ɸ1500x9000mm | ɸ18x8000mm |
| Rap qhuav crum nruas dia.xl | ɸ1200x6500mm | ɸ1500x8000mm | ɸ1500x9000mm | ɸ18x8000mm |
| Kev Nkag Tebchaws Kev Nkag Tebchaws | 550kg / h | 650kg / h | 850kg / h | 1200kg / h |
| Cov hmoov av sau thaj chaw lim | 384m2 | 480m2 | 408m2 | 528m2 |
| Cov Tov Khoom Kub Thiab Ntim | Ntxaib nteg hniav tuaj | Ntxaib nteg hniav tuaj | Nruam thiab Batch | Nruam thiab Batch |
| Thermal Cia Rau Hauv Ntim | 5m3 | 10m3 | 12m3 | 12m3 |
| Bitumen Tank Ntim | 1x 30 m3 | 1x 40 m3 | 2x 40 m3 | 3x 40 m3 |
| Addassive Ntsia Hlau Conveyor Tsav | 1x 0.75kw | 1x 0.75kw | 1x 0.75kw | 1x 1.1kw |
| Tswjhwm system | PLC + KOV KAWG | |||
